A stray ball went through one of the window panes in the top section. The glass is gone, the frame around it is cracked, and the steel beside the opening is pushed in, so the whole section is in question rather than one pane.
A brand-new section beside sections that have weathered ten summers will look brighter, and it is worth knowing that before the order goes in. Paint fades gradually on the existing sections, but the new one does not reliably converge with them, and a visible difference can remain for good. Where the difference matters, the options are to repaint the full door in the current colour, to choose a different colour for the whole door, or, on an older door, to replace all the sections together. The technician shows you the manufacturer's current colour against your existing finish so the decision is made with open eyes.
Sound familiar?Vaughan
Garage Door Panel Replacement · Vaughan
Scene 1
Sections are made to fit one model, so the first job is to name yours. The technician looks for the manufacturer's label, usually a sticker on the end of a section, inside the top section or on a track, and reads the model or series, the date and sometimes a colour code. Then come the measurements: overall width and height, the height of each section, its thickness, and the spacing of the hinge holes on the stiles. The panel design is noted too, whether short raised panels, long panels, flush or a carriage-house look, along with the window layout and the type of joint between sections. Photographs of the label and of the whole door go into the file.
Scene 2

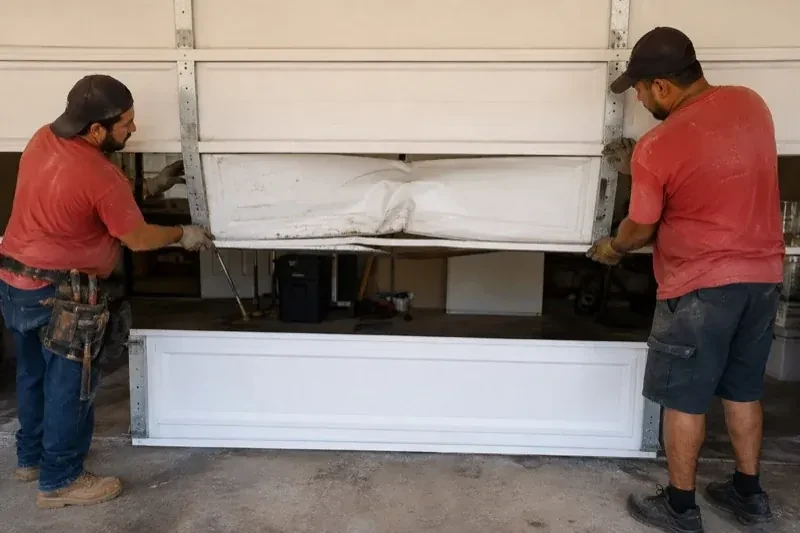

The bottom section is the one place where the lift cables attach, and those cables are held taut by the springs. Before its brackets are unbolted, the technician takes the energy out of the system. On a torsion door that means fitting winding bars into the cone and unwinding the spring turn by turn while the set screws are loosened; on an extension-spring door it means propping the door open and unhooking the springs. With the cables slack, the bottom brackets, the seal retainer and the section itself can be removed safely. The same steps are reversed at the end, and the door's balance is set fresh.
Scene 3
Most section damage comes from a handful of everyday moments, and small changes head them off. Wait until the door is fully open before pulling in or out; the sensor and lights on many openers make that easy to judge. Give the door a metre of clearance when parking a trailer or leaning bikes. If the driveway is the rink, a practice net or a sheet of plywood on the inside face of the lower sections takes the pucks instead of the steel. And if the door is ever struck, stop using it and have it looked at, because the visible dent is not always the whole story.
What shapes the quoteConcord Garage Door Services
FeesSame any hour
It is disconnected at the release cord and unplugged before any hardware comes off, so the motor cannot pull on a door that is missing a section. After the new section is in and the door has been balanced by hand, the opener is reconnected and tested: its reversal against a board on the floor and its photo-eyes are checked every time, and the open and close limits or the force setting are reset only if that check shows they need it.
A strut is a horizontal steel stiffener fastened across the inside of a section to keep it from bowing. Wide doors, top sections where the opener arm pulls, and bottom sections that take knocks are the usual places for them. If your damaged section had a strut, the new one gets a straight strut refitted or replaced. If a top section bowed because it never had one, adding a strut is part of putting it right.
It will match the factory colour your door was made in, which is not quite the colour your door is today, because paint fades in sun and weather. A fresh section can look noticeably brighter than its neighbours, and that difference may not go away with time. If the contrast bothers you, the whole door can be painted with an exterior product suited to the finish. Ask to see the current colour chip against your door first.
YorkOntario
Garage Door Panel Replacement · Concord, Steeles Corners, Thornhill
Every square is one home in a hundred.
On-site assessment
A stray ball went through one of the window panes in the top section.
